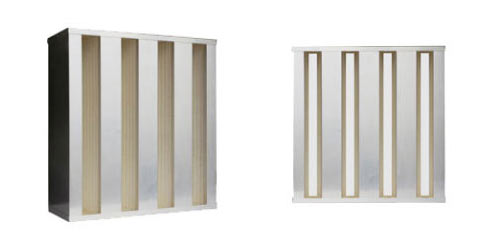

V-shaped Mini Pleated Medium Efficiency Filter
Product Detail
Basic Info WAT-FF

Features：
Clapboard: without Clapboard
Filter Number: 9
Medium Material: Fiberglass
Efficiency: F9
Filtration Grade: Medium Filter
Type: V Bank Filter
Purifying Technology: Cleaning Room
Structure: Floor Standing
Usage: Ahu, Surface Treatment, Dust Removal, Production
Trademark: OEM is available
Transport Package: Carton
Specification: EN779, ISO9001: 2008
Origin: China
HS Code: 84219990
Product Description
Mini-pleat filter made of high-strength waterproof glass-fiber papers, employs innovative none-separator technology guaranteeing remarkable characteristics of large effective filtration area with low pressure drop, long useful life-time and small installation space.
Features:
1. Frame: PP or ABS plastic material with high burst resistance to air-flow lashing, suitable for HVAC system with frequent vibration in velocity and pressure.
2. Medium: High-strength waterproof glass-fiber papers without producing poisonous gas when incinerating, meeting requirements of environmental protection.
3. Spacing material: Hot-melt glue.

Features：

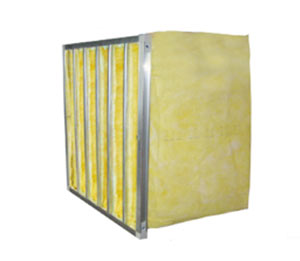

1.Firm metal frame structure
2.Optimised V-shape pocket structure, low pressure drop, long lifetime
3.Ultra fine glass fiber material, Efficiency can be maintained within lifetimeStructure
Description:
1、 The frame is made of galvanized steel sheet or aluminum alloy sheet. The thickness of galvanized steel sheet is 20mm while the thickness for aluminum sheet is 21mm.
2、 The frame comprises rib supports made of galvanized steel sheet. Each pocket is hold tightly by a rib support to prevent drop off.
3、 The filter media is made of ultra fine glass fiber material. The V-shape allows a bigger filter surface area. It has a long service life and a steady efficiency.
4、 Maximum allowable pressure drop is 600Pa.
5、 Efficiency： F5
Applications：
F5、 F6 are used as the main filters in AHU or AC ventilation system of commercial buildings and industries and pre-filters in AHU or ventilation system of clean rooms.
F7、 F8、 F9 are used as the main filters in AHU or AC ventilation system of commercial buildings, industries and clean rooms.
